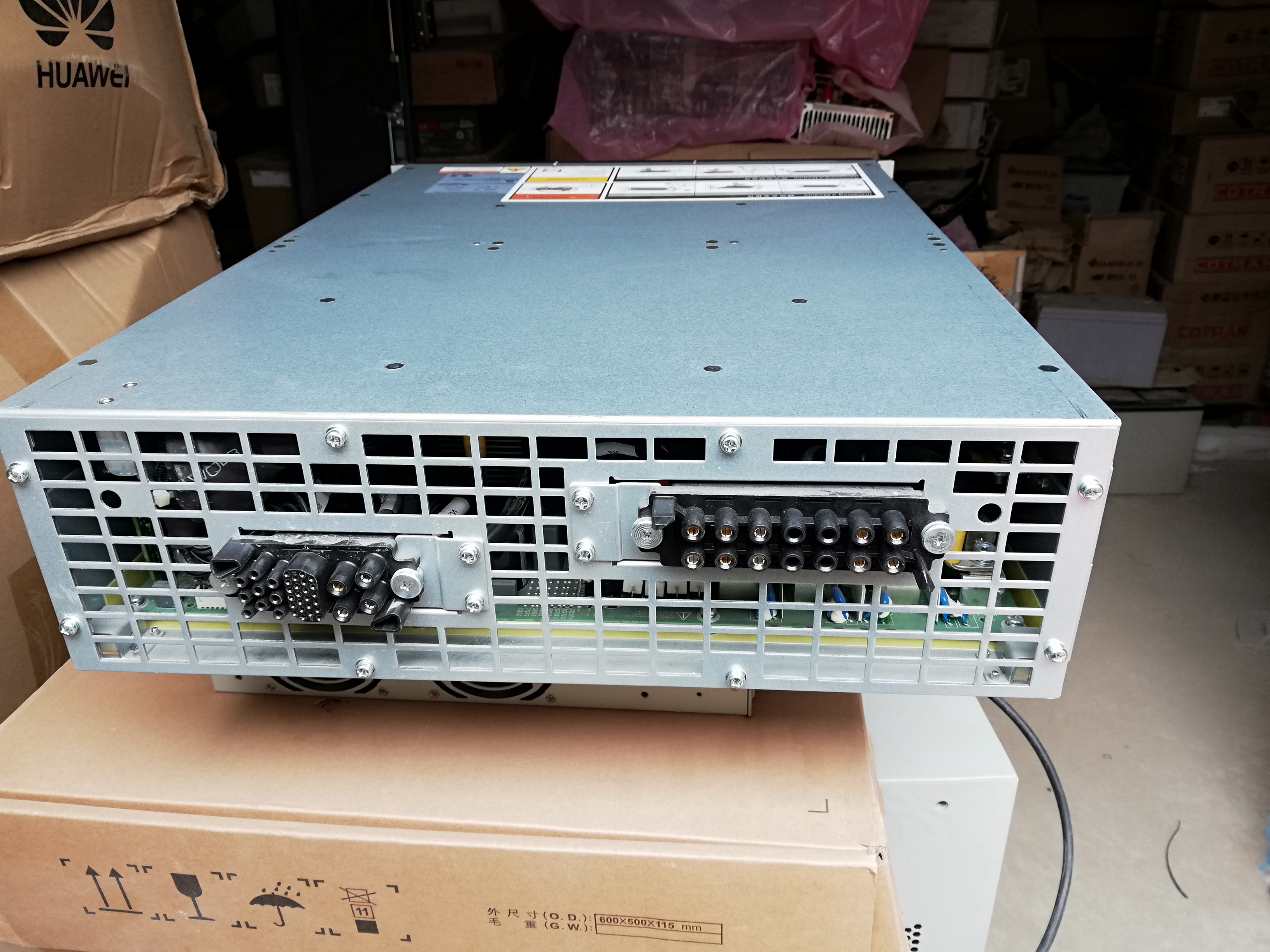

HUAWEI PM50K-V4N 50KVA UPS supply module

HUAWEI PM50K-V4N 50KVA UPS supply module

The power module applied by Huawei ups5000-e-150k-fm is pm50k-v4h main power modular ups5000-e series 50KVA / 50KW power UPS power supply. The power modular design is to increase the capacity in the later stage when the power is small in the first stage design.

50KVA power module Huawei modular UPS power supply.

The development trend of large-scale UPS power supply has gone in the direction of modularization. In order to better meet the user's requirements for UPS power supply, Huawei has launched three power modules for customers to choose, which are 25KVA, 40KVA and 50KVA. Among them, the 50KVA power module has a wide voltage input range of 138-485vac and ultra wide voltage input range to adapt to various harsh grid operating environments. 1 + 1 redundancy design of control module eliminates all single point of failure.

Efficient design, the efficiency can be as high as 96% under 40% load rate in online mode, and as high as 99% under eco mode. The 600KVA covers only 1.2 square meters, which is more than half of the traditional UPS power supply. In addition, the height of 50KVA power module is only 3U, and there is a light loose network, which is easy to manage Support multiple languages, friendly man-machine interface, standard intelligent management, save a lot of manpower and material resources in the process of using the battery program.

PM50K-V4H, PM50K-V4S, PM50K-V4H, PM50K-V5S and PM50K-V4N also belong to this series.

华为UPS5000-E-150K-FM应用的功率模块为PM50K-V4H主功率模块化UPS5000-E系列 50KVA/50KW功率UPS电源，功率模块化的设计就是首期设计功率小的情况下，后期可以增容。
50KVA功率模块华为模块化UPS电源
   大型UPS电源的发展趋势已往模块化的方向走去  为了更好地适应用户对UPS电源的使用要求 华为共推出3款功率模块供客户选购 其具体为25KVA 40KVA 50KVA其中50KVA功率模块宽广的电压输入范围138-485VAC超宽电压输入范围，适应各种恶劣电网运行环境。控制模块1+1冗余设计，消除所有单点故障。
     高效的设计，在线模式下40%的负载率时，效率可高达96%，ECO模式效率下可高达99%  密集的设计，600KVA占地仅为1.2平米比传统UPS电源节省占地面积一半以上，另外50KVA功率模块高度仅为3U 另外还有轻松组网，易于管理 支持多种语言，友好人机界面，标准智能管理电池程序  使用过程中节省大量的人力物力
