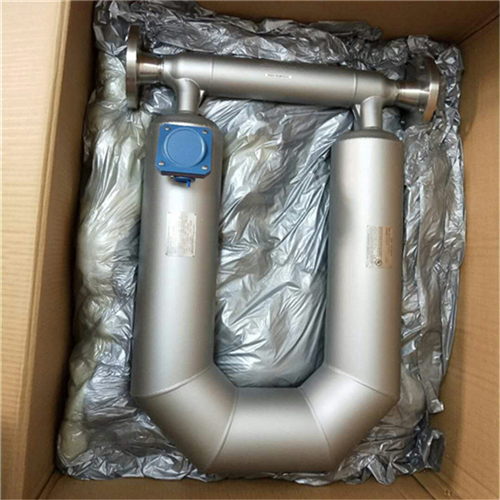

Emerson mass flowmeter (high precision, Coriolis) F025

Emerson Micro Motion mass flowmeter (high precision, Coriolis) F025 /CMF010/050/025/100

Brand: Emerson

Model: F025

Type: mass flowmeter Coriolis

Measurement range: 0-108 (kg / h)

Accuracy class: 0.1%

Nominal diameter: 1025 (mm)

Applicable medium: liquid and gas

Working pressure: 11 (MPA)

F series high performance compact self emptying Coriolis flowmeter and densitometer

Compact self emptying flowmeter for optimal flow and density measurement

·The compact design has excellent sensitivity to reduce variability in process control

·Cleanable self emptying design makes product change faster

Most widely used:

·Provide FMT transmitter for rapid filling, batching and batch applications

·2-wire loop power option to simplify installation

·Supports wireless thum, PROFIBUS-DP and DeviceNet protocols for maximum operational versatility

·Stainless steel or nickel alloy structure and high temperature, high pressure options, suitable for a variety of process fluids and industrial and mining conditions

·Flange option in accordance with Namur ne 132 for standardizing layout length (face-to-face).

Superior reliability and safety

·Intelligent instrument self calibration can realize fast and complete instrument diagnosis without interrupting the process

Now, the F-series instruments provide superior reliability and ease of use for critical applications through smart meter self calibration. F series instruments are available in stainless steel or nickel alloy. You can choose the most suitable material for the process fluid. Some F series models can be used in high temperature and high pressure applications.

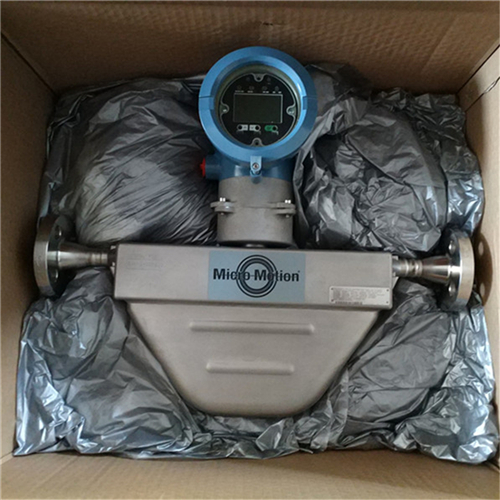

CMF series high precision 0.1% mass flowmeter, integrated type, split type, various caliber 6 mm, 15 mm, 50 mm, 100 mm, 200 mm, 300 mm, etc.
